Re-Lining
RD Pipeline Solutions Ltd offer an innovative structural relining system that provides a cost-effective alternative to traditional pipe repair and excavation methods. Our structural relining system is classed as a type 2 structural lining system in accordance with the sewer classification manual.
Perfect where access is difficult
Each liner is designed to overcome many common drain, pipeline and sewer problems such as cracks, fractures, broken pipes, open joints and infiltration. It is also ideal for repairing defective pipes in difficult locations where excavation is not possible or access if restricted.
Dealing with deformed pipes
In certain situations, a deformed pipe can be reformed back to within 10 percent deformation allowing the extended life of a collapsing sewer. On completion of the relining process, any lateral connections can be reopened using our robotic cutter.
- Sizes from 100mm upwards
- Computer designed liners
- No dig repair solution
- Various installation and curing methods (to suit site circumstances)
Patch Repair

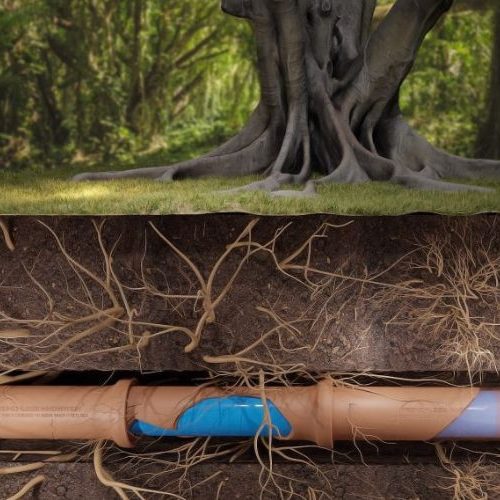

A drain patch repair or spot repair is a small section of liner that targets specific defects such as a root damaged joint, a burst pipe or a fractured length of pipe.
The super smooth finish of the installed liner more than compensates for the nominal diameter loss and patch liners offer a smooth chamfered transition from the host pipe to the liner.
The super smooth finish of the installed liner more than compensates for the nominal diameter loss and patch liners offer a smooth chamfered transition from the host pipe to the liner.
How Patch Repairs work
A woven fabric patch is treated with an epoxy resin before being wrapped around an inflatable packer. The packer is then inserted into the drain or sewer up to the point of the defect.
The packer is then inflated and holds the patch mechanically to the host pipe until the curing process is complete. The packer is then deflated and removed leaving a smooth patch repair over the defective joint or fracture.
Ideal for targeting specific defects such as damaged joints, fractures, and misaligned pipework, the patch repair method allows the repair of defects between drainage and sewer pipe junctions and connections without capping them off.
